Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SUNNYWORLD
  • Model Number: SW-FSP-60
  • Material: Monocrystalline Silicon, Monocrystalline silicon
  • Size: 500*450*72mm
  • Max. Power: 60w
  • Maximum power: 60W
  • Maximum voltage: 18V
  • Maximum current: 2*1.67A
  • Voc: 21.06V
  • Isc: 2*1.78A
  • Packing: 5pcs/carton
  • Folding size: 500*450*72mm
  • Weight: 7.6kg
  • Certification: CE,TUV,ISO,CSA

Packaging & Delivery

Packaging Details 5pcs/Carton
Delivery Time Within 15 days after receiving deposit

china factory direct sell 60W 80W 100W 120W 12V folding foldable solar cell solar panel

Skype: fishlee-0423







Product Description



Specifications

Model

SW-FSP-60

Maximum Power (Pmax)

60W

Open Circuit Voltage (Voc)

21.6V

Short Circuit Current (Isc)

2*1.78A

Voltage at maximum power (Vmp)

18V

Current at maximum power (Imp)

2*1.67A

Weight

7.6kg

Dimensions

500mm×450mm×72mm

Temperature Coefficient of Pm

-0.47%/K

Temperature Coefficient of Voc

-0.35%/K

Temperature Coefficient of Lsc

0.11%/K

Tolerance

0 to +5%

Controller

12V/5A

NOCT

48+/-2 (118.4°F +/-3.6°F)

Operating Temperature

-40 to +85 (-40°F to +185°F)

Bypass diodes

3 diodes

Maximum mechanical load

Snow load: 5400PA(IEC Standard); Wind load: 2400Pa(IEC Standard)

Maximum series fuse rating

10A

Maximum System Voltage

1000 VDC (TÜV-EN/IEC61215) / 600VDC (UL)



Other useful information

The electrical data applied under standard test conditions (STC): irradiance of 1000 W/m2 with an AM 1.5 spectrum at a
cell temperature of 25
.

Electrical parameter tolerance ±5%.

Design and specifications are subject to change without notice.









Company Information

 Why choose SUNNYWORLD ?



1. Sunnyworld is a professional solar panel manufacturer established in 2003.

2. Sunnyworld offers a wide range of monocyrstalline and polycyrstalline solar panels from 3W to 310W. Customized solar panels are also acceptable.

3. Our solar panels  conform to CE, TUV, CSA, IEC, UL international standards.

4. Each panel is designed to perform under the harshest weather conditions and comes with a

    power warranty of 25 years.

5. Sunnyworld is not only a solar panel manufacturer, we also designed the first automatic solar tabber and stringer for cutting  solar cells in 2011.



Certifications

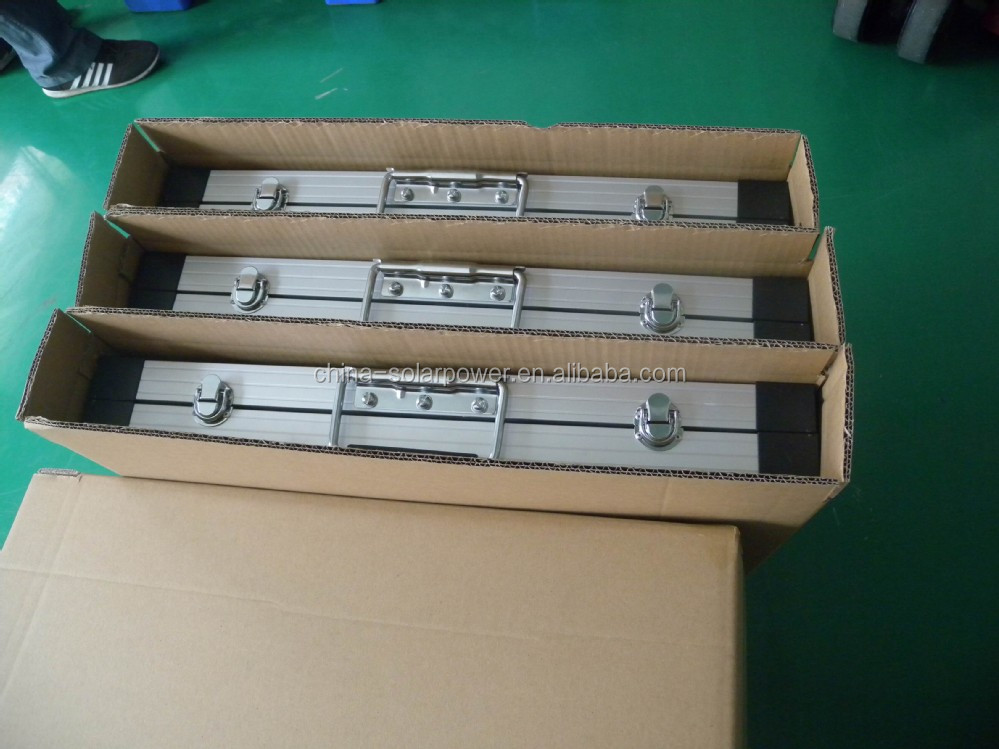

Packaging & Shipping
