Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SUNNYWORLD
  • Model Number: XHH-F100
  • Material: Monocrystalline Silicon, Monocrystalline silicon
  • Size: 1220*700*2.8mm
  • Number of Cells: 36
  • Max. Power: 100W
  • Maximum power: 100W
  • Maximum voltage: 18V
  • Maximum current: 5A
  • Voc: 21.6V
  • Isc: 5.5A
  • Solar cells size: 156*156mm
  • Panel size: 1220*700*2.8mm
  • Weight: 2.5kg

Packaging & Delivery

Packaging Details 2pcs/Carton, 20 Cartons/Pallet

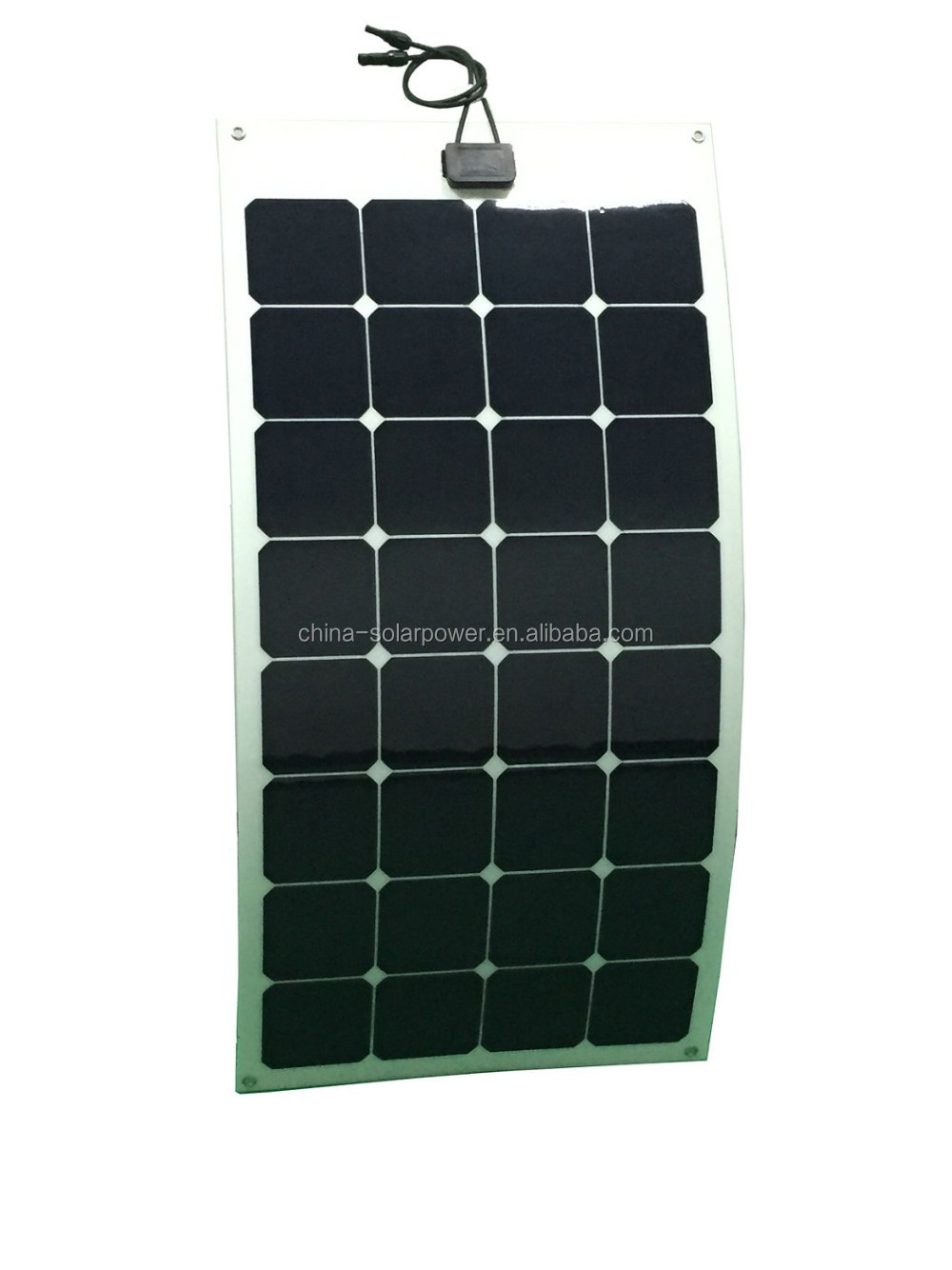

100w 200w semi flexible solar panel solar module with top grade cell

Skype: fishlee-0423











Product Description



Specifications

Model

XHH-F100

Maximum Power (Pmax)

100W

Open Circuit Voltage (Voc)

21.6V

Short Circuit Current (Isc)

5.5A

Voltage at maximum power (Vmp)

18V

Current at maximum power (Imp)

5A

No. of Cell

32

Weight

2.5kg

Dimensions

1220mm×700mm×2.8mm

Temperature Coefficient of Pm

-0.47%/K

Temperature Coefficient of Voc

-0.35%/K

Temperature Coefficient of Lsc

0.11%/K

Tolerance

0 to +5%

Cell

125mm x 125mm

NOCT

48+/-2 (118.4°F +/-3.6°F)

Operating Temperature

-40 to +85 (-40°F to +185°F)

Bypass diodes

3 diodes

Maximum mechanical load

Snow load: 5400PA(IEC Standard); Wind load: 2400Pa(IEC Standard)

Maximum series fuse rating

10A

Maximum System Voltage

1000 VDC (TÜV-EN/IEC61215) / 600VDC (UL)



Other useful information

The electrical data applied under standard test conditions (STC): irradiance of 1000 W/m2 with an AM 1.5 spectrum at a
cell temperature of 25
.

Electrical parameter tolerance ±5%.

Design and specifications are subject to change without notice.







Company Information



 Why choose SUNNYWORLD ?



1. Sunnyworld is a professional solar panel manufacturer established in 2003.

2. Sunnyworld offers a wide range of monocyrstalline and polycyrstalline solar panels from 3W to 310W. Customized solar panels are also acceptable.

3. Our solar panels  conform to CE, TUV, CSA, IEC, UL international standards.

4. Each panel is designed to perform under the harshest weather conditions and comes with a

    power warranty of 25 years.

5. Sunnyworld is not only a solar panel manufacturer, we also designed the first automatic solar tabber and stringer for cutting  solar cells in 2011.

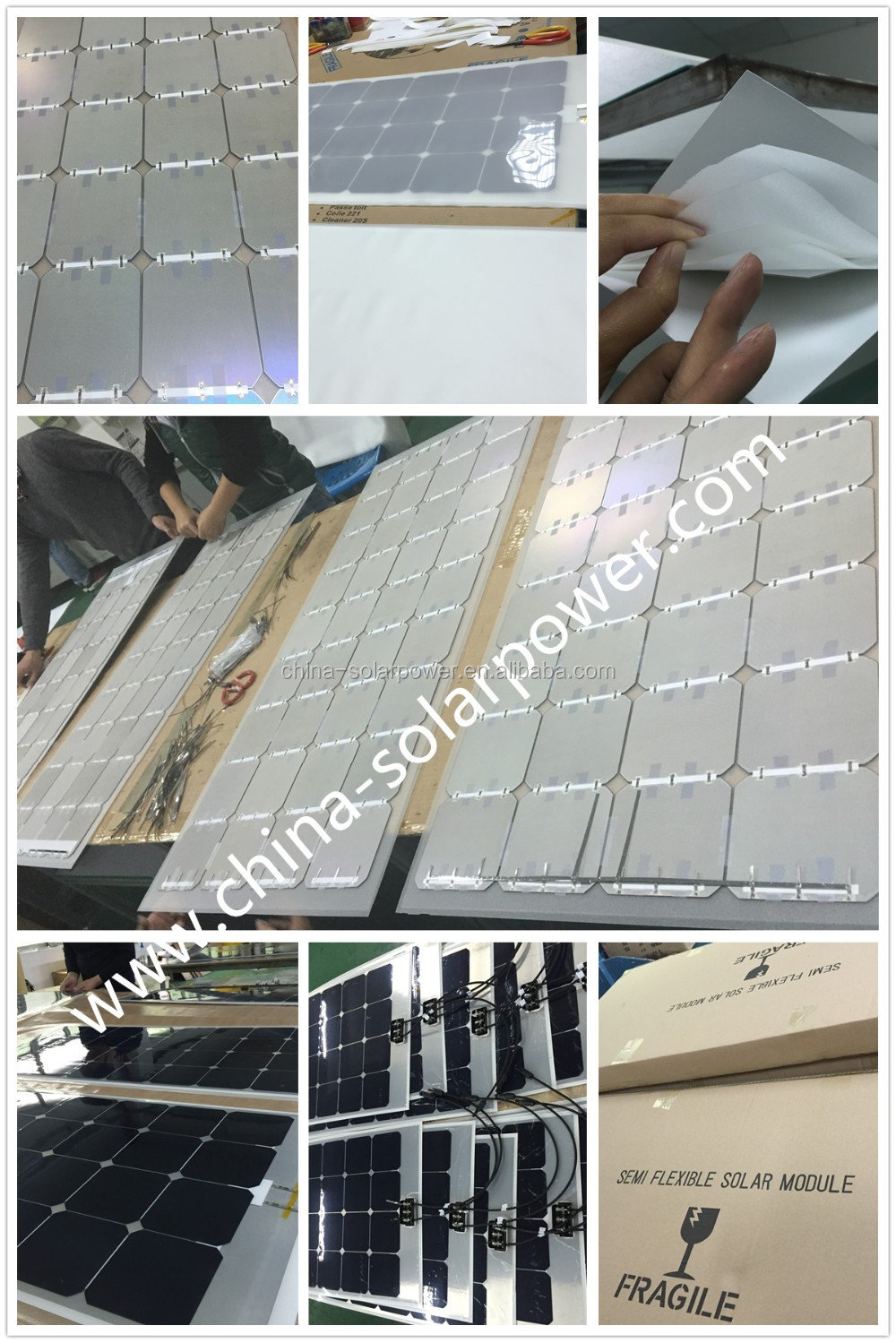

Our factory





Certifications











Packaging & Shipping

1. Packaging:  2pcs/Carton, 20 Cartons/Pallet

2. Delivery: Within  15 days after receiving deposit.
