Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SUNNYWORLD
  • Model Number: H530
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Soldering Capacity: 1MW/month
  • Cell type: 30-125*125mm, 30-156*156mm
  • Warranty: 12 months
  • Soldering technology: IR light

Packaging & Delivery

Packaging Details wooden cases

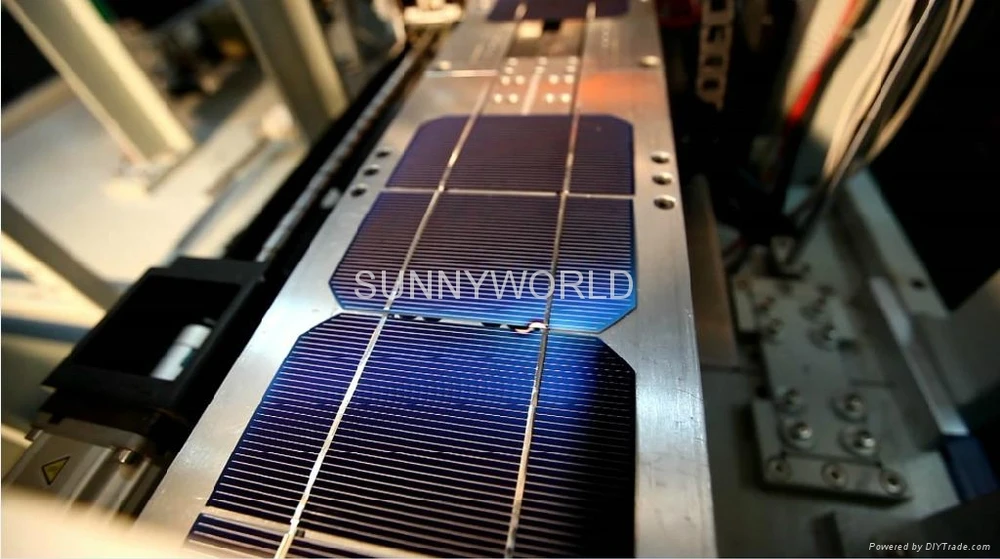

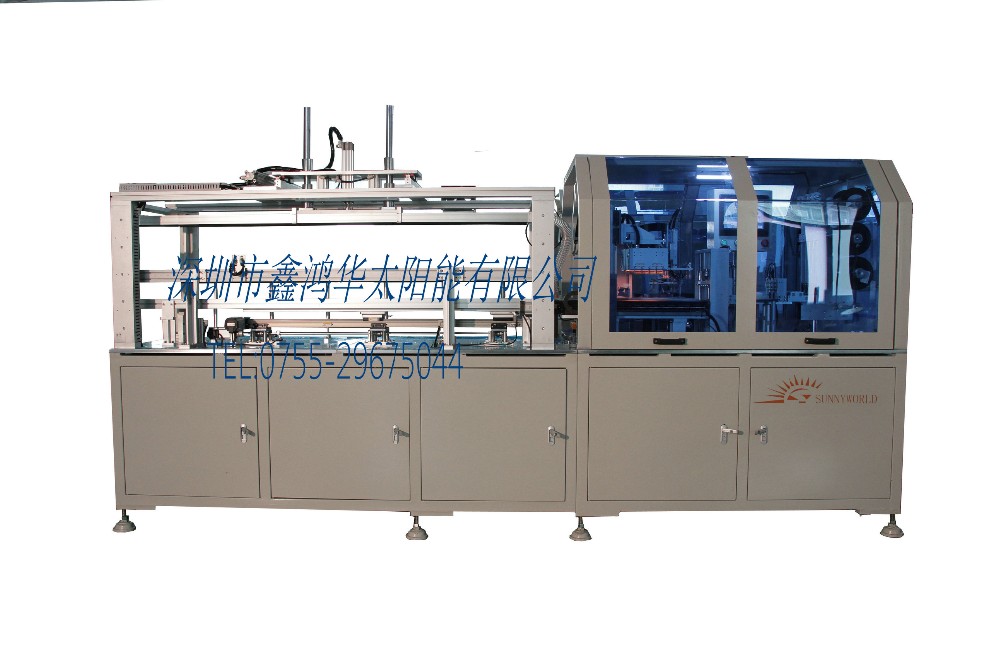

sunnyworld solar cell stringer tabber machine soldering full                                 cells and cut cells

                                         skype: fishlee-0423











Product Description

 Technical Datas

Soldering capacity6S/pcs
Cell’s dimension30~125*125mm; 30~156*156mm
Cell thicknessFrom 160 micron and up
Ribbon sizesWidth is 1.6~2.0mm, Thickness is 0.12~0.23mm
Breakage≤0.3%
Cell basket capacityFour cell baskets system to load up to a maximum of 100 pieces each, total 400 pcs
Operation controlPLC touch screen

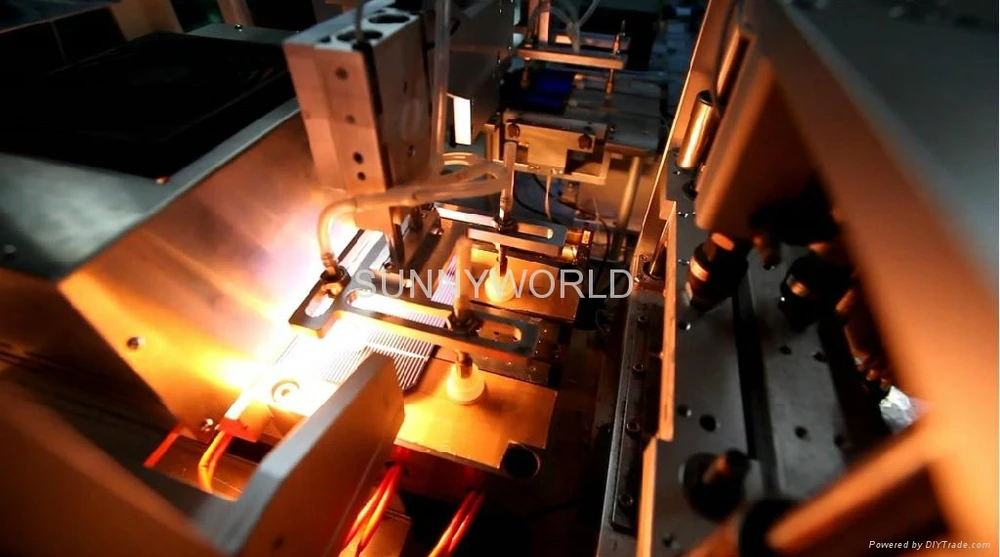

Soldering technologyIR light
Soldering light life≥1000Hr
Soldering temperatureNormal~400℃(adjustable)
Input power50~60Hz/AC380V/16A
Peak power10 KW
Average power4~5 KW
Compressed air≥0.5Mpa clean & dry air
Compressed air consumptionApprox 200 l/min
Max. length of the string1950mm
Operator interfaceChinese or English
Dimension 3650*1400*1800mm
WeightApprox 1300KG
Warranty12 months



































































































1.Suitable for 5′,6′ whole cells and rectangle cutting cells (the rectangle cells’ minimum width is 30mm)
2.Special designs for the cutting cells
3.The parameter can be set optionally by the touch screen.

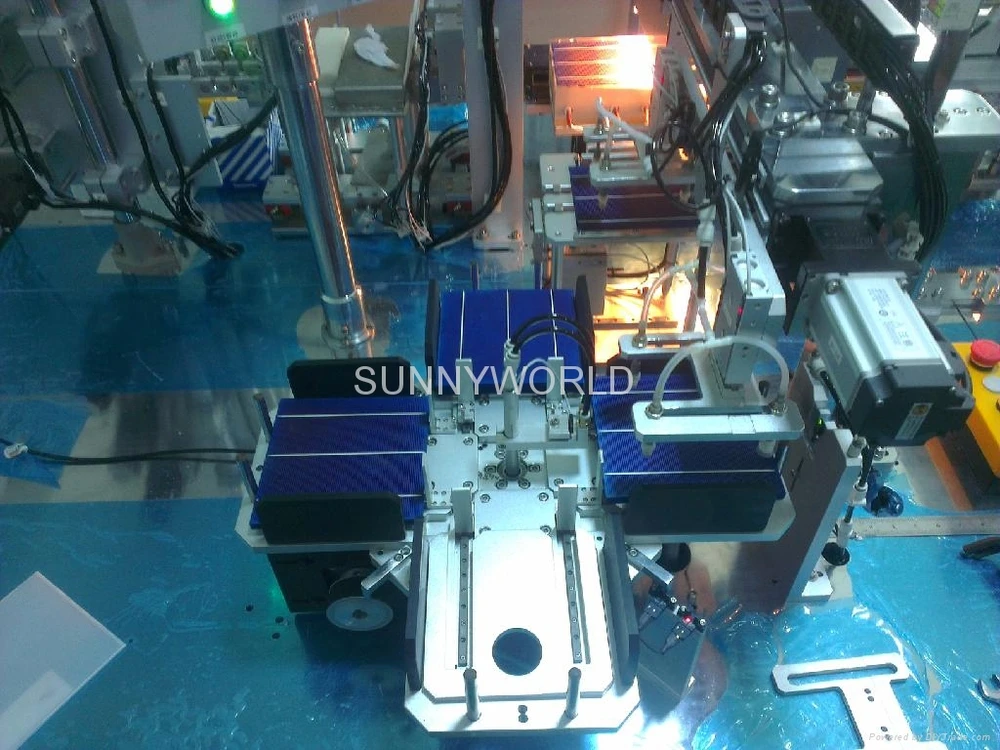

4.4-way arm rotating turn-table can load different shapes of cutting cells to meet the different requirements on connection.
5.The setting time in changing the width of cells is less than 20 minutes.
6.The setting time in changing the type between 2 bus bar cells and 3 bus bar cells isless than 30 minutes
7.The number of solar cells for the strings is settable by the touch screen
8.Adjustable range of the distance of cells is 2 to 30mm
9.High flexibility for varied cells
10.Operation reliable, less maintenance required
11. Simple operation, only need one day for trainning
12.Only one worker for two machines









Company Information









FAQ



1. Warranty?

--- 12 months



2.  Soldering capacity?

--- 600pcs/hour or 1MW/Month



3.  Efficiency?

--- 1 machine equal to 10 staffs



4.  Breakage?

--- ≤0.3%



5.  Cell size?

---  30-125*125mm, 30-156*156mm
