Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SUNNYWORLD
  • Model Number: H1300
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Soldering Capacity: 3MW/month
  • Cell type: 30-125*125mm, 30-156*156mm
  • Warranty: 12 months
  • Soldering technology: IR light

Packaging & Delivery

Packaging Details wooden cases
Delivery Time within 20 working days after receiving the deposit

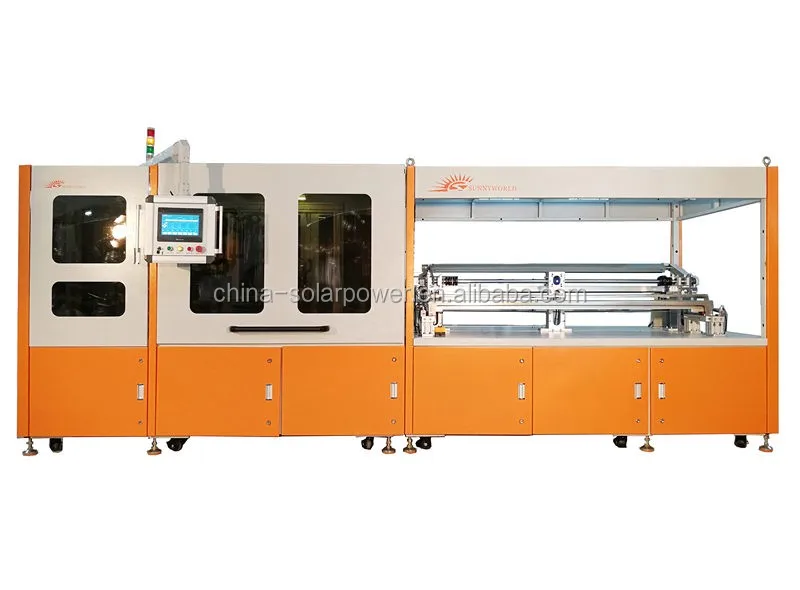

3BB/4BB/5BB/6BB Sunnyworld solar cell tabber stringer machine H1300



H1300 product video on Youtube : https://youtu.be/589quiJpvfY

Video on Youku: http://v.youku.com/v_show/id_XMjY1NDEzMTc3Ng==.html?tpa=dW5pb25faWQ9MTAzMjUyXzEwMDAwMV8wMV8wMQ+







Product Description





Features:

Ø   H1300 is a single track automatic tabber stringer for solar cells

Ø   Up to 1300 cells/hour with single track

Ø   High flexibility for 2BB/3BB/4BB/5BB solar cells

Ø   Works with different kind of cells including cut cells with width >30mm

Ø   The number of cells for string is settable from touch screen

Ø   Cell spacing is adjustable

Ø   Quick and simple operation & ribbon change

Ø   Low cost of spare parts and consumables



Main parameters

No.

Item

Parameters

Remarks

1

Soldering Capacity

Max 1300 cells/hour



2

Cell Size

30~125x125mm,30~156x156mm



3

Cell busbar

2BB/3BB/4BB/5BB

 6BB optional

4

Cell thickness

≥160 micron



5

Ribbon Size

Width 1.2~2.0mm,thickness 0.12~0.23mm



Ribbon size should be informed by customer before order

6

Breakage Rate

≤0.3%

On the basis of Grade A cells

7

Busbar alignment tolerance

≤0.3mm

On the basis of Grade A cells

8

Cell spacing

2~20mm



9

Cell basket capacity

4 x 100pcs

4 cell baskets system to load up to a maximum of 100pcs each, total 400 pcs, auto switch

10

Soldering technology

IR light



11

Soldering Lamp lifespan

≥2000hours



12

Soldering temperature

Normal~400℃(adjustable)



13

Input power

Three-phase/50~60Hz/380V/30A

Power cable >6mm2



14

Peak Power

20KW



15

Average power

5~6KW



16

Compressed air

≥0.5MPa dry & clean air



17

Compressed air consumption

Approx 200 liter/min



18

Max. String Length

1950mm

Suitable for 12pcs 6inch cells per string with 2mm cell spacing

19

Operation Method

PLC touch-screen



20

Operator Interface

Chinese and English



21

Dimension

5000mmx1600mmx2000 mm

Length*width*height

22

Weight

2500KG



23

Warranty

12 months
