Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SUNNYWORLD
  • Model Number: H1200
  • Type: solar panel manufacturing machines
  • Operate mode:: solar panel manufacturing machines
  • Soldering capacity:: 1300/hour or 30MW/year
  • Cell type:: 125 156 Cell 2bus bar 3 busbar 4 busbar
  • Warrenty:: 1 year
  • Peak power:: 10KW
  • Average power:: 4-5KW
  • Easy Operation: No experience needed
  • Training:: Free training for 7 days
  • Service: Low Cost free InstallationTurnkey Solution solar panel manufacturing

Packaging & Delivery

Packaging Details wooden box for Low Cost free InstallationTurnkey Solution solar panel manufacturing

                                        Sunnyworld solar panel manufacturing equipment price





Contact information:

Ms. Fish Lee

E-mail: sales.fishlee(at)foxmail.com



WhatsApp & Mobile: +86  13723426346











Product Description



Welcome to watch the product working vedio on Youtube :

H530 tabber stringer: http://youtu.be/REo3Gd4ktOw

H1200 tabber stringer: https://youtu.be/AaOS7ABImTM

H730 tabber stringer: https://youtu.be/8piqbsAyO_Q

Auto lay up machine: https://youtu.be/EAXC5roOOjA

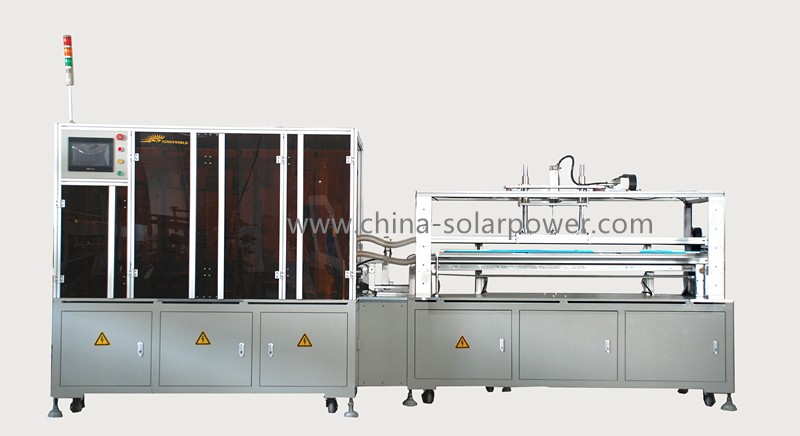

Specification
Warranty:12 months
Soldering capacity:1300pcs/hour or 30MW/year
Efficiency:1 machine equal to 20 staffs
Breakage: 0.3%
Cell size:30-125*125mm, 30-156*156mm
Cell type:125 156 Cell 2bus bar 3 busbar 4 busbar 5busbar
Cell thickness:From 160 micron and up
Ribbon sizes :Width is 1.2-2.0mm, thickness is 0.12-0.23mm
Cell basket capacity:Four baskets system to load up to 100pcs each, total 400pcs
Operation control: PLC touch screen
Soldering technology: IR light
Soldering light life: 1000Hr
Soldering temperature:Normal 400(adjustable)
 Input power: 50-60Hz/AC380V/16A
Peak power:10KW
Average power:4-5KW
Compressed air:0.5 Mpa clean&dry air
Compressed air consumption: Approx 200L/min
Max. length of the string:1950mm
Operator interface:  Chinese or English
Dimension: 4350*1300*1850mm
Weight : 2300kg

Advantages:

1.Suitable for 5′,6′ whole cells and rectangle cutting cells (the rectangle cells’ minimum width is 30mm)
2.Special designs for the cutting cells
3.The parameter can be set optionally by the touch screen.
4.4-way arm rotating turn-table can load different shapes of cutting cells to meet the different requirements on connection.
5.The setting time in changing the width of cells is less than 20 minutes.
6.The setting time in changing the type between 2 bus bar cells and 3 bus bar cells isless than 30 minutes
7.The number of solar cells for the strings is settable by the touch screen
8. Adjustable range of the distance of cells is 2 to 30mm
9. High flexibility for varied cells

10.Operation reliable, less maintenance required
11. Simple operation, only need one day for trainning
12.Only one worker for two machines

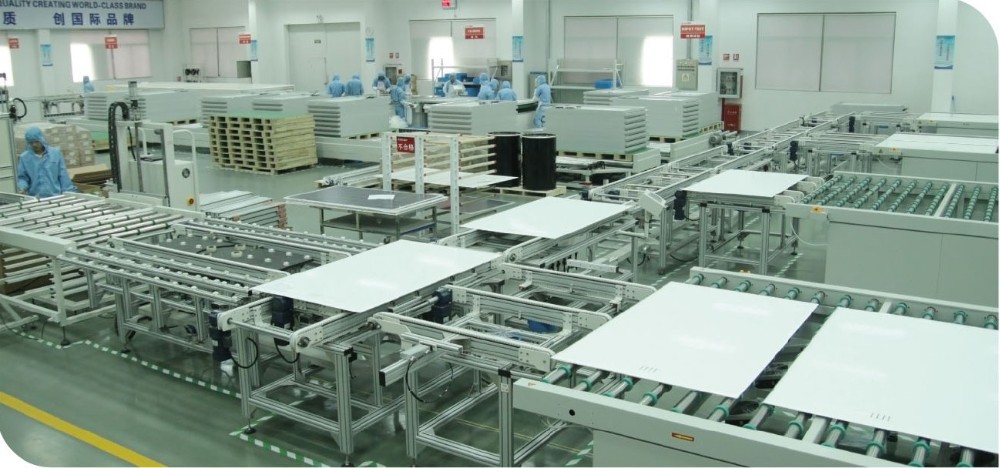

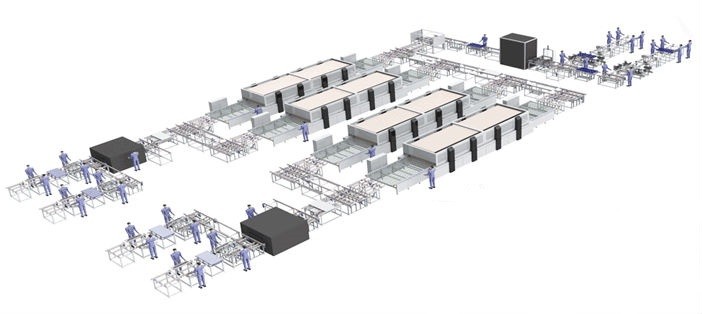

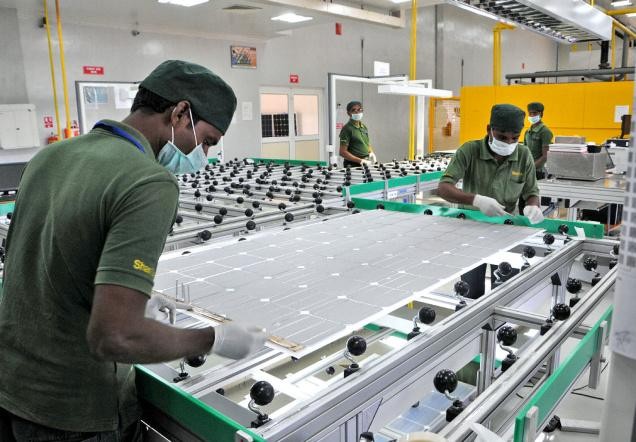

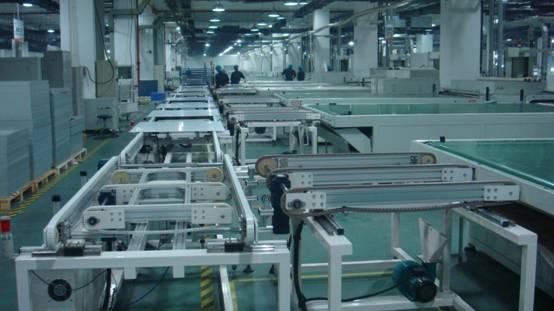

Installation Cases















Certifications

CE , TUV , ISO





Warranty

1)12 months warranty

2)Free Installation oversea

3)Free Debugging oversea

4)Free Training oversea





Packaging&shipping

1. Package:  Export Wooden Box

2. Delivery time:  20 working days after receiving deposit
